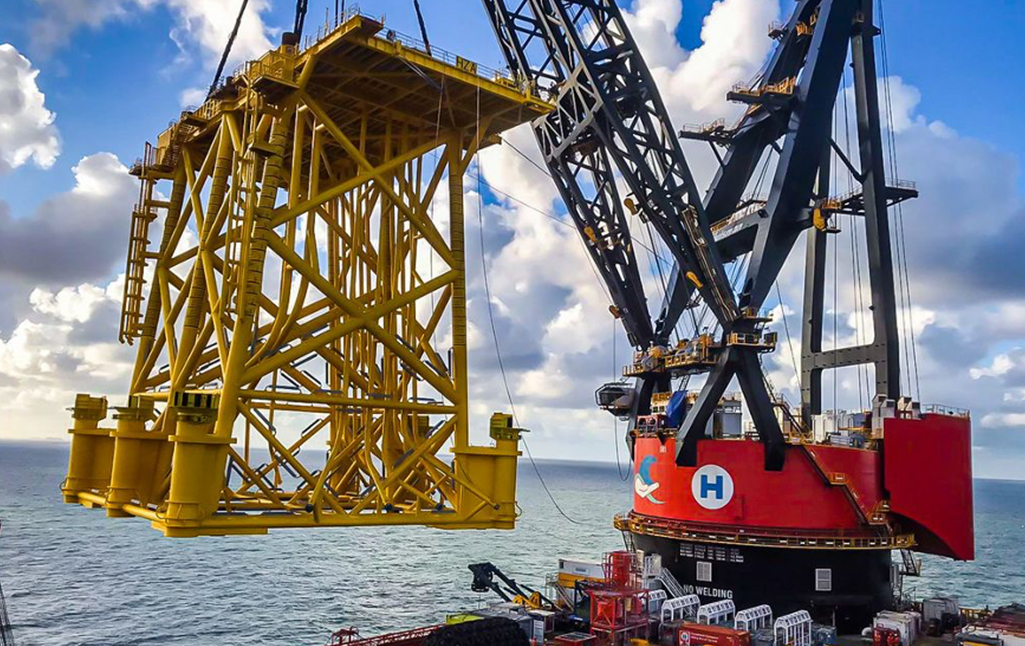

IRM Pile Grippers are unique Engineering products for levelling Jackets and preventing any movement during Grouting. While Being in the mid-sea, waves and storms cause relative movements of piles which may damage jacket foundations severely. Hence to restrict such movements, Pile Grippers are fitted on Jackets. They are actuated hydraulically to hold Pile firmly and prevent any relative movement. Pile Grippers are used to level jackets before grouting and are essential to stop the slightest displacement of the Jacket during the setting time of grout materials.

All our pile grippers are 100% tested for their design and testing load under the witness of the Third-Party Inspection Agency at our factory before dispatch.

IRM Pile Grippers are supplied with complete accessories like a Hydraulic Power unit, Control Panel, Hose Pipes, Distribution Unit, Hot stabs, and other required components for ROV Intervention as per the requirement.

The complete Hydraulic Power unit and Control panel are designed for ease of operation.

IRM Pile Grippers are available up to 200" pile dia. size and with capacities up to 4500t. or more as per the client's requirement, Different operational options and hydraulic circuits are also possible. This flexibility enables IRM to provide suitable solutions for every jacket installation.

IRM also provides supervision services during the installation and testing of Pile grippers at the site during offshore operations. We have a well-trained & experienced team of Engineers to provide such services to our clients for ease of installation and operation of the Pile grippers.

Product Highlights

  • Key Attributes
  • Range
  • Applications
  • Custom-built grippers as per the specific load requirement.
  • Provides stability during the levelling of the Jacket in all weather conditions.
  • Auxiliary backup to overcome any contingency during operation.
  • All accessories are available as per the client's requirement.

IRM Pile Grippers are available upto 200" Dia size Higher or customisable sizes can be customised as per the client’s requirements.

  • Offshore drilling platform
  • Offshore process platforms
  • Wind turbines
  • Transformer platforms
